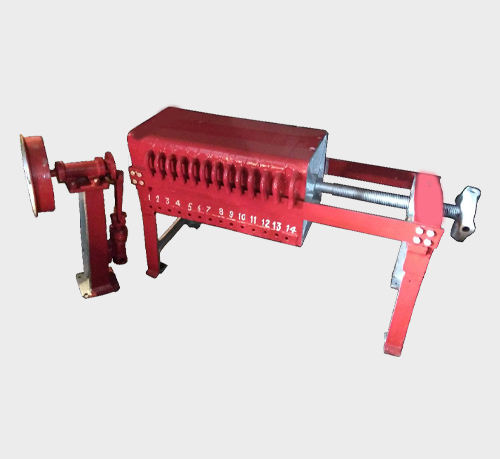

Filter Press
Our specially designed Filter Press is widely accepted in industries ranging from oil industries, pharmaceuticals, fertilizers, refineries, water project, paint industries & sugar mills. Our Filter press are designed to give maximum filtration efficiency, longer life and least maintenance.
Our Filter Press comes in variety of sizes, Plates and Frame types and are made from high grade C.I. casting.
Features:
- Robust construction.
- Easy & Quick Cleaning.
- Precision machining ensuring no leakage.
- Made from high graded CI casting.
- Ratchet System for high output filters.
- Coupled with plunger pump for proper running
Specification
| Plate Type | ||
| Approx Filtration | Motor | Motor |
| 12" X 12" X 12 Plates | 500 Kg | 1 Hp |
| 14" X 14" X 14 Plates | 1000 Kg | 1 Hp |
| 18" X 18" X 18 Plates | 3000 Kg | 2 Hp |
| 24" X 24" X 24 Plates | 6700 Kg | 3 Hp |
| 24" X 24" X 30 Plates | 8400 Kg | 3 Hp |
| 30" X 30" X 30 Plates | 12-16 Ton | 5 Hp |
| 36" X 36" X 36 Plates | 24-25 Ton | 7.5 Hp |
| Plate & Frames Type | ||
| Approx Filtration | Motor | Motor |
| 30" X 30" X 30 Plates & 29 Frames | 19 Ton | 7.5 HP |
| 36" X 36" X 36 Plates & 35 Frames | 30 Ton | 7.5 HP |
| The filtering capacity varies with the viscosity of the oil & liquids and with the amount of the sediments contained there in. | ||
